High pressure hydraulic hoses with different end fittings

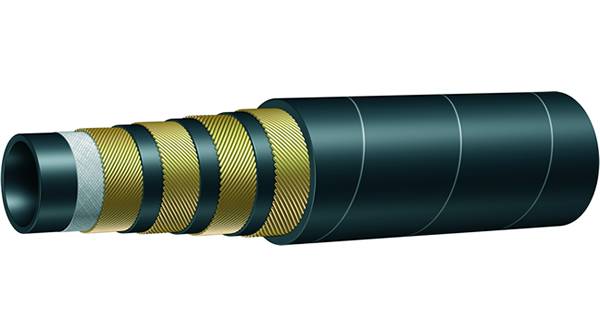

Hydraulic hose HP200 designed with four spiral-wire braid is suitable for all kinds of hydraulic equipment, including in agriculture, industry, metallurgy and mining, where high working pressure and impulse pressure are essential factors.

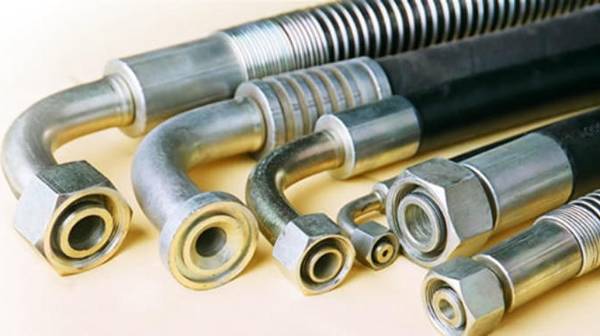

High pressure hydraulic hoses with different end fittings
High pressure hydraulic hoses with different end fittings
High Pressure Hose Series HP200 description
Part | Hose Size ID | Hose OD | Max. Working Pressure | Min. Bend Radius | Min. Burst Pressure | Weight | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
in | DIN | in | mm | psi | MPa | in | mm | psi | MPa | (lbs/ft.) | |
SHP200-04 | 1/4 | 6.4 | 0.7 | 17.9 | 6550 | 45.2 | 6 | 152 | 26200 | 180.6 | 0.38 |
SHP200-06 | 3/8 | 9.5 | 0.84 | 21.4 | 6450 | 44.5 | 7 | 178 | 25800 | 177.9 | 0.49 |
SHP200-08 | 1/2 | 12.7 | 0.96 | 24.6 | 6000 | 41.4 | 9 | 229 | 22000 | 165.6 | 0.58 |
SHP200-10 | 5/8 | 15.9 | 1.11 | 28.2 | 5000 | 34.5 | 10 | 254 | 20000 | 137.9 | 0.72 |
SHP200-12 | 3/4 | 19 | 1.26 | 32.2 | 5000 | 34.5 | 12 | 305 | 20000 | 137.9 | 0.96 |
SHP200-16 | 1 | 25.4 | 1.56 | 39.7 | 2000 | 27.6 | 13.5 | 343 | 16000 | 110.3 | 1.32 |
