Dual textile-braided hydraulic hose for low pressure application

Low pressure hydraulic hose with two braids of textile

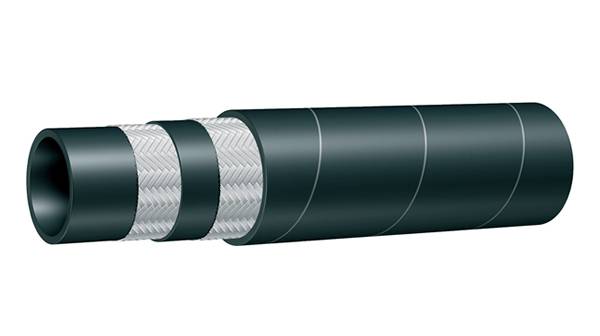

Hydraulic hose reinforced by two braids of textile for low pressure application

Hydraulic hose series LP100 is a combination of excellent oil-resistant inner tube, anti-crushing reinforcement and wear resistant and all-weather Neoprene cover.

Low pressure hose LP100 is reinforced by two braids of texture and its max. Operating pressure reach up to 1250 psi. Characterized by oil-resistance, portability, light weight and durability, low pressure rubber hose is often used for conveying petroleum or water based hydraulic fluids or pneumatic applications where low pressure is needed.

Low Pressure Hose Series LP100 description

  • Tube: Synthetic Rubber
  • Reinforcement: Two layers of premium textile fabric
  • Cover: Neoprene
  • Max. Working Pressure: up to 1250 psi
  • Inside Diameter Range: 1/4 in. to 1 1/4 in.
  • Operating temperature: 40°F to 212°F (-40°C to 100°C) constantly
  • Safety factor: 4:1
  • Packaging: inside diameter up to 1 in. packaged in reels, larger in coils.

Note: Not recommended for air brake.

Low Pressure Hydraulic Hose Series LP100
Part Hose Size ID Hose OD Max. Working Pressure Min. Bend Radius Min. Burst Pressure Weight Packaging
in mm in mm psi MPa in mm psi MPa (lbs/ft. ) Type Length Tolerance (%) Min Length per package (ft.) Total Length per Package (ft.)
LP100-04 1/4 6.4 0.56 14.3 1250 8.6 3 76 5000 34.5 0.12 Reel ±10% 10 500
LP100-05 5/16 7.9 0.68 17.5 1200 8.3 4 102 4800 33.1 0.16 Reel ±10% 10 500
LP100-06 3/8 9.5 0.75 19 1125 7.8 4 102 4500 31 0.17 Reel ±10% 10 500
LP100-08 1/2 12.7 0.93 23.8 1000 6.9 5 127 4000 27.6 0.25 Reel ±10% 10 500
LP100-12 3/4 19 1.25 31.8 750 5.2 6 152 3000 20.7 0.43 Reel ±10% 10 500
LP100-16 1 25.4 1.5 38.1 565 3.9 8 203 2260 15.6 0.51 Reel ±10% 10 500
LP100-20 1 1/4 31.8 1.75 44.4 377 2.6 10 254 1508 10.4 0.63 Coil ±20% 10 100
