Medium pressure hydraulic hose for high temp up to high temp

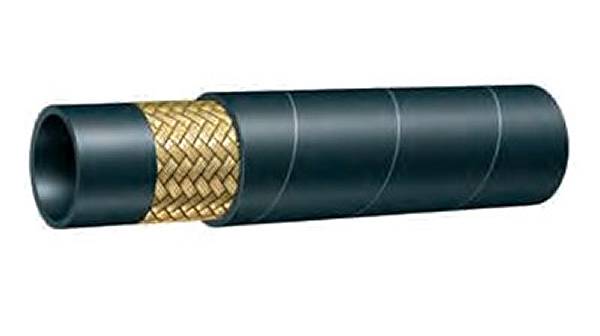

Hydraulic rubber hose with one braid of high-tensile steel wire
Hydraulic hose ideal for extremely high temp up to 275°F

Medium pressure hose MP200 belongs to high temperature hose and is especially suitable for high temp applications where constant operating temp reaches up to 135°C, including mobile, machine tool and agricultural machines. Nitrile tube is very compatible with aliphatic hydrocarbons, such as gasoline (leaded and unleaded), diesel or other petroleum-based products.

Hydraulic hose MP200 description

  • Tube: Nitrile
  • Reinforcement: One braid of high-tensile steel wire
  • Cover: Neoprene
  • Operating Temperature: -40°F to 275°F (-40°C to 135°C)
  • Max working pressure: up to 3270 psi
  • ID size: from 1/4 in. to 2 in.
  • Safety factor: 4:1

Note: Hydraulic hoses should be used under specified pressure and temp in case of damages.

Medium Pressure Hydraulic Hose Series MP200
Part Hose Size ID Hose OD Max. Working Pressure Min. Bend Radius Min. Burst Pressure Weight Packaging
in DIN in mm psi MPa in mm psi MPa (lbs/ft.) Type Length Tolerance (%) Min Length per package (ft.) Total Length per Package (ft.)
MP200-04 1/4 6.4 0.51 13.1 3270 22.5 4 102 13080 90.2 0.14 Reel ±10% 10 250
MP200-06 3/8 9.5 0.67 17.1 2615 18 5 127 10460 72.1 0.21 Reel ±10% 10 250
MP200-08 1/2 12.7 0.79 20.3 2320 16 7 178 9280 64 0.27 Reel ±10% 10 250
MP200-10 5/8 15.9 0.92 23.4 1890 13 8 203 7560 52.1 0.32 Reel ±10% 10 250
MP200-12 3/4 19 1.07 27.4 1530 10.5 9.5 241 6120 42.2 0.4 Reel ±10% 10 250
MP200-16 1 25.4 1.39 35.3 1280 8.8 12 305 5120 35.3 0.62 Reel ±10% 10 250
MP200-20 1 1/4 31.8 1.69 43.1 920 6.3 16.5 419 3680 25.4 0.84 Coil ±20% 10 100
MP200-24 1 1/2 38.1 1.97 50.1 730 5 20 508 2920 20.1 1.09 Coil ±20% 10 100
MP200-32 2 50.8 2.5 63.6 580 4 25 635 2320 16 1.34 Coil ±20% 10 100

If you need to consult the price, please contact the business department by E-mail:

sales@hydraulichosefactory.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
