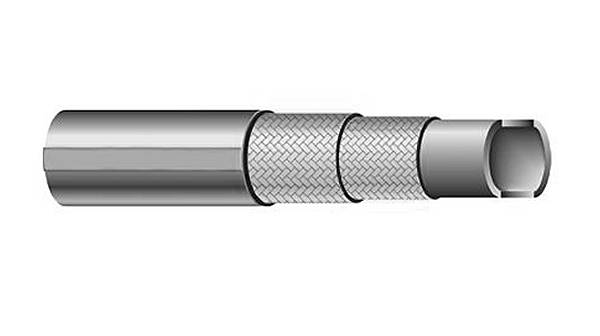

Hydraulic hose with double steel wire braid
High pressure hydraulic hose

Hydraulic hose series HP100 has oil-resistant NBR tube, anti-kick reinforcement and abrasive-proof Neoprene cover together contribute to versatile applications such as a wide application in construction, machine tool and agricultural applications, where high working pressure is required.

High Pressure Hose Series HP100 description

  • Tube: NBR
  • Reinforcement: Two braids of high-tensile steel wire
  • Cover Compound: Neoprene
  • Temperature Range: -40°F to 275°F (-40°C to 135°C)
  • Max working pressure: up to 5800 psi
  • Wide size range: from 3/4 in. to 2 in. (19 to 50.8mm)
High pressure hydraulic hose HP100
Part Hose Size ID Hose OD Max. Working Pressure Min. Bend Radius Min. Burst Pressure Weight Packaging
in DIN in mm psi MPa in mm psi MPa (lbs/ft.) Type Total length per package (ft.) Min length per package (ft.)
HP100-04 1/4 6.4 0.58 14.7 5800 40 4 102 23100 160 0.24 Reel 250 10
HP100-06 3/8 9.5 0.74 18.7 4800 33.1 5 127 19100 132.4 0.34 Reel 250 10
HP100-08 1/2 12.7 0.86 21.8 4000 27.6 7 178 16000 110.3 0.43 Reel 250 10
HP100-10 5/8 15.9 0.99 25 3630 25 8 203 14520 100.1 0.5 Reel 250 10
HP100-12 3/4 19 1.14 29 3120 21.5 9.5 241 12480 86 0.61 Reel 250 10
HP100-16 1 25.4 1.48 37.6 2400 16.5 12 305 9600 66.2 0.88 Reel 250 10
HP100-20 1 1/4 31.8 1.88 47.7 1820 12.5 16.5 419 7280 50.2 1.29 Coil 100 10
HP100-24 1 1/2 38.1 2.13 54.1 1310 9 20 508 5240 36.1 1.61 Coil 100 10
HP100-32 2 50.8 2.63 66.7 1160 8 25 635 4640 32 1.98 Coil 100 10
