Medium pressure hydraulic hose
shade
Hydraulic hose Series MP300 provides an effective and economical solution for medium-pressure applications. It has excellent compatibility with gasoline, diesel, lubricating oils, water, and other petroleum hydraulic oils.

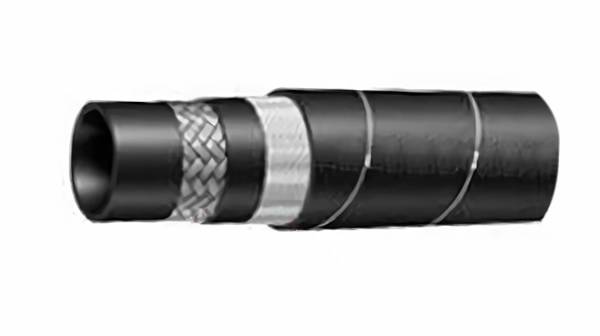

Reinforced by one braid steel wire and one braid textile, the reinforcement provides high working pressure up to 3000 psi as well as flexibility. This braided hose uses excellent oil resistant NBR tube and abrasive-proof cover which withstands oils, acids, ozone and other adverse factors encountered in working environment, is often a popular choice for medium working pressure hose.
Note: Not suitable for under-the-hood, vehicle and fuel hoses.
Hydraulic hose series MP300 description
Medium pressure hydraulic hose

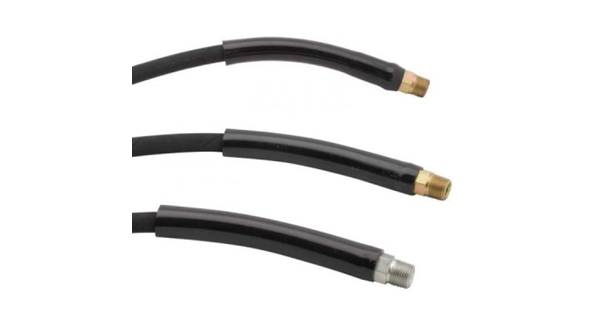

Hydraulic hoses protected by natural rubber in case of excessive abrasion
| Part | Hose Size ID | Hose OD | Max. Working Pressure | Min. Bend Radius | Min. Burst Pressure | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | psi | MPa | in | mm | psi | MPa | (lbs/ft.) | |
| MP300-04 | 1/4 | 6.4 | 0.582 | 14.8 | 3,000 | 20.7 | 3.4 | 86 | 12,000 | 82.7 | 0.18 |
| MP300-05 | 5/16 | 7.9 | 0.68 | 17.3 | 2,250 | 15.5 | 4 | 102 | 9,000 | 62.1 | 0.22 |
| MP300-06 | 13/32 | 10.3 | 0.78 | 19.8 | 2,000 | 13.8 | 4.6 | 117 | 8,000 | 55.2 | 0.23 |
| MP300-08 | 1/2 | 12.7 | 0.906 | 23 | 1,750 | 12.1 | 5.5 | 140 | 7,000 | 48.3 | 0.34 |
| MP300-10 | 5/8 | 15.9 | 1.077 | 27.4 | 1,500 | 10.3 | 6.5 | 165 | 6,000 | 41.4 | 0.41 |
| MP300-14 | 7/8 | 22.2 | 1.232 | 31.3 | 800 | 5.5 | 7.4 | 188 | 3,200 | 22.1 | 0.44 |
| MP300-18 | 1 1/8 | 28.6 | 1.5 | 38.1 | 625 | 4.3 | 9 | 229 | 2,500 | 17.2 | 0.53 |
