Hydraulic hose series HP300 - Hi-impulse, six-spiral steel wire braid

High pressure hydraulic hoses HP300 have a unique reinforcement of six spiral-wire braids which provides extremely high working pressure and impulse pressure. It is widely used in metallurgical equipment, mining equipment and hoisting apparatus where high pressure and temp are needed.

Synthetic rubber tube has excellent compatibility with most of hydraulic oils, water and petroleum-based fluids. Its cover uses special synthetic rubber which has excellent resistances against abrasion, corrosion, ozone deterioration and aging.

Hydraulic hose Series HP300 description

  • Tube: Synthetic rubber
  • Reinforcement: Six-spiral steel wire
  • Cover: Synthetic rubber
  • Operating temp: –40°F to +250°F (–40°C to +121°C)
  • Operating pressure: up to 6000 psi
  • Safety factor: 4:1
  • Packaging: Coil
High Pressure Hydraulic Hose Series HP300
Part Number Hose I.D. Hose O.D. Maximum Operating Pressure Minimum Burst Pressure Minimum Bend Radius Weight of Hose
mm in mm in bar psi bar psi mm in Kg/m lbs/ft
HP300-16 25.4 1 42.9 1.69 420 6000 1680 24000 304.8 12 2.66 1.79
HP300-20 31.8 1 1/4 51.6 2.03 420 6000 1680 24000 419.1 16.5 3.62 2.43
HP300-24 38.1 1 1/2 58.9 2.32 420 6000 1680 24000 508 20 4.72 3.17

High pressure hydraulic hose is widely applied by various hydraulic machines

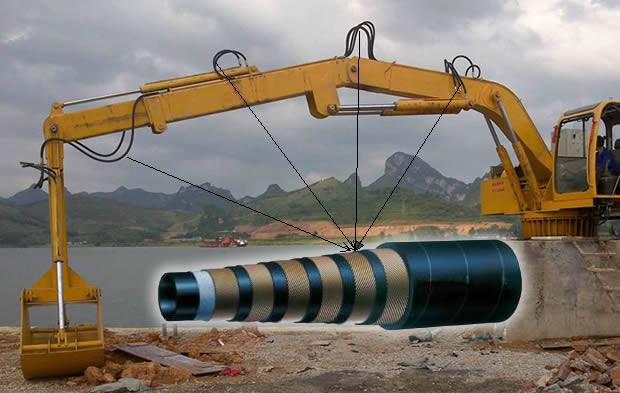

High pressure hydraulic hoses used in yellow digger
