Low pressure hydraulic Hose LP200 for extreme high temp

Low pressure hydraulic hose series LP200 combines excellent oil-resistant NBR tube, kick-resistant spiral reinforcement and Neoprene cover which has exceptional resistance against weathers, oils, acids, ozone degradation and abrasion.

LP200 features high operating temp up to 275°F. This high temp rubber hose is designed to transfer petroleum and water based fluids as fuel lines, power steering return hoses and lube lines where low pressure and flexibility are required.

Note: Not recommended for brake applications.

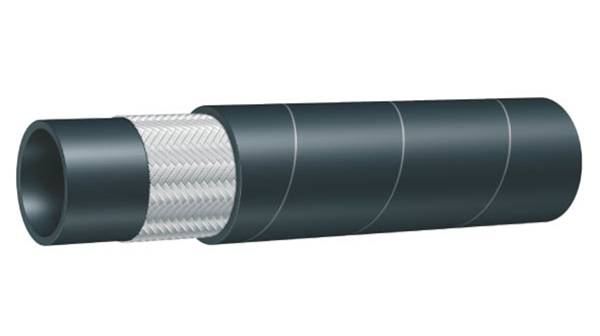

Hydraulic hose reinforced by spiral textile braid Hydraulic rubber hose coated by plastic tube in case of abrasion

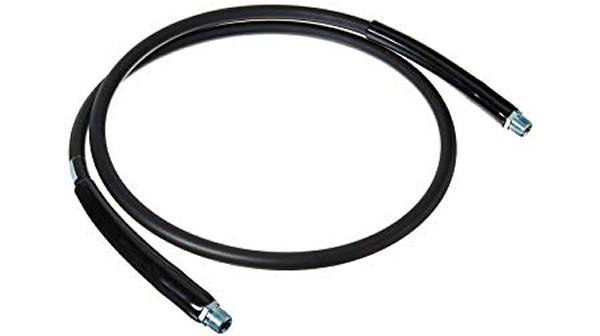

Low pressure hydraulic hose designed for high temp application Hydraulic hose assembly often used in return line of hydraulic system

Low Pressure Hose Series LP200 description

  • Inner Tube: NBR
  • Reinforcement: Single spiral braid of textile
  • Cover: Neoprene
  • Temperature Range: -40°F to 275°F (-40°C to 135°C)
  • Max operating pressure: up to 400 psi
  • Safety factor: 4:1

Packaging

  • Packaging type: Reel
  • Min Length per package: 10 ft.
  • Total Length per package: 500 ft.
  • Length Tolerance (%): ±10%
Low Pressure Hydraulic Hose - LP200 Series
Part Hose Size ID Hose OD Max. Working Pressure Min. Bend Radius Min. Burst Pressure Weight
in DIN Dash Size in mm psi MPa in mm psi MPa (lbs/ft.)
LP200-04 1/4 6.4 0.5 12.7 400 2.8 2.5 64 1600 11 0.08
LP200-05 5/16 7.9 0.56 14.3 400 2.8 3 76 1600 11 0.08
LP200-06 3/8 9.5 0.62 15.9 400 2.8 3 76 1600 11 0.11
LP200-08 1/2 12.7 0.78 19.8 400 2.8 4 102 1600 11 0.15
LP200-10 5/8 15.9 0.9 23 350 2.4 5 127 1400 9.7 0.18
LP200-12 3/4 19 1.04 26.6 200 2.1 6 152 1200 8.3 0.25

If you need to consult the price, please contact the business department by E-mail:

sales@hydraulichosefactory.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
